You can count on Toyu for anything to do with motors, from quotations from Asian manufacturers, to delivery and after-sales service. A comprehensive technical support team of experienced engineers and long relationship with manufacturers means Toyu is able to respond quickly and accurately to any requirement you may have.

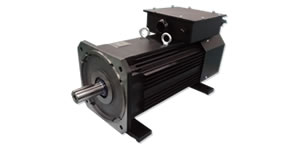

PM Motor
- Manufacturers:
TECO
- <TECO Manufacturing Capacity>
- TYPE ： DVLF(Surface Permanent Magnet)
- Output ： 3.7～75kW
- R.P.M ： 1500, 2000 R.P.M
- Voltage ： 220V, 380V
- Frequency ： 60Hz
- Frame Size ： 100～160
- TYPE ： DVLF(Interior Permanent Magnet)
- Output ： 2.2～75KW
- R.P.M ： 1500, 3000, 4500 R.P.M
- Voltage ： 220V, 380V
- Frequency ： 60Hz
- Frame Size ： 132, 160

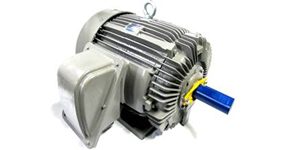

High Efficiency Motor
- Manufacturers:
TECO, TATUNG, HYOSUNG - Supply record:
Set manufacturers
- <TECO Manufacturing Capacity>
- Rated output: 1 to 270 HP
- Rated voltage: up to 600 V
- Number of poles: 2 to 6
- Frequency: 50/60 Hz
- Frame number: IEC: 80-315 / NEMA: 143T to 449

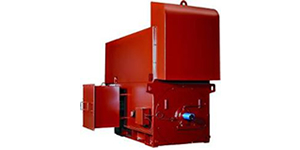

High Voltage 3 Phases Induction Motor
- Manufacturers:
TECO, TATUNG, HYOSUNG, CROMPTON - Supply record:
Engineering companies, set makers and steel manufacturers
- <TECO Manufacturing Capacity>
- Rated output: 125 to 30,000 HP
- Rated voltage: up to 13,800 V
- Number of poles: 2 to 12
- Frequency: 50/60 Hz
- Frame number: IEC : 280 to 560 (cast iron) / IE: 315 to 1400 (steel plate) / NEMA: 440 to 6800 & above

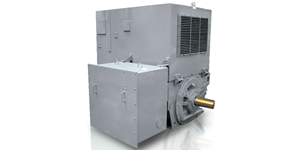

Wound Rotor Motor
- Manufacturers:
TECO - Supply record:
Steel manufacturer
- <TECO Manufacturing Capacity>
- Rated output: 10 HP and over
- Rated voltage: LV、HV
- Number of poles: 4 to 16
- Frequency: 50/60 Hz
- Frame number: IEC: 160 & above

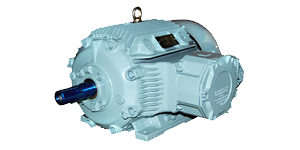

Explosion Proof Motor
- Manufacturers:
TECO, TATUNG, HYOSUNG, CROMPTON - Supply record:
Oiler manufacturers and pump manufacturers
- <TECO Manufacturing Capacity>
- Rated output: 0.75 to 150 HP
- Rated voltage: up to 600 V
- Number of poles: 2 to 8
- Frame number: 143 to 445
- Certification <CNS, BASEEFA, CSA, UL> Working on increasing the number of certifications

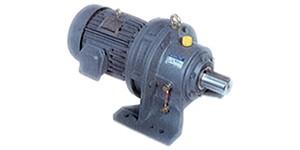

Cycloidal Speed Gear Motor & Reducer
- Manufacturers:
Transmission with TECO motor - Supply record:
Steel manufacturers
- <Manufacturing capability of transmission>
- Rated output of electrical moto:
0.2 kW (1/4 HP) to 75 kW (100 HP)/4 Pole
15 kW (20 HP) to 132 kW (175 HP)/6 Pole - Reduction ratio:
6:1 to 119:1 (Single-stage type)
104:1 to 7,569:1 (Second stage type)
990:1 to 658,503:1 (Third stage type) - Output torque: 0.60 kg-m to 6,150 kg-m

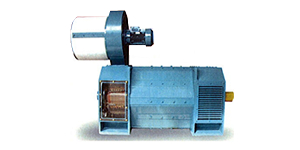

DC Motor
- Manufacturers:
CUTES Corp, TECO - Supply record:
Steel manufacturers
- <TECO Manufacturing Capacity>
- Rated output: up to 1650 kW
- Field voltage: DC 160 V to 340 V (depending on model)
- Applicable standards: JIS, JEC, JEM, IEC
